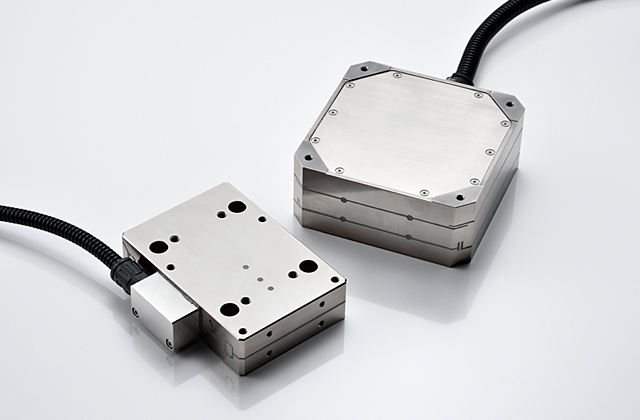

Force Sensor

High-rigidity type

Force Sensor

Logo NanoControl
High-rigidity type

  • Capable of detecting and measuring a load of 100N (10kgf) or more with high resolution.
  • Optimal for force measurement in precision machining or precision pressing.
  • Supports customization such as a change of the shape or the sensitivity.

Suitable for uses where the force is measured with high sensitivity while maintaining the rigidity.

  • Measuring the cutting/grinding force in precision machining
  • Detecting the contact between the cutting tool edge and the workpiece
  • Pressing/hardness control
  • Thrust/reaction force monitoring
  • Strength test in the manufacturing process
  • Measurement of friction force
Unidirectional detection
Model number FS1H-100NH FS1H-100NV
Detection direction Horizontal Vertical
Measurement range 0 ~ 100N(≒10kgf)
Resolution (sensitivity) 20mN(≒2gf)
Linearity ±1%
Rigidity 19.2nm/N 30.4nm/N
Body mass 3kg
Size 120×120×30

Bidirectional detection
Model number FS2H-100NH FS2H-100NV
Detection direction Horizontal + Horizontal Horizontal + Vertical
Measurement range 0 ~ 100N(≒10kgf)
Resolution (sensitivity) 20mN(≒2gf)
Linearity ±1%
Rigidity (H)18.4, (H)18.6nm/N (H)20.8, (V)26.2nm/N
Body mass 4.5kg
Size 120×120×50
