Piezo Stage

Simple actuator

Piezo Stage

Logo NanoControl
Simple actuator

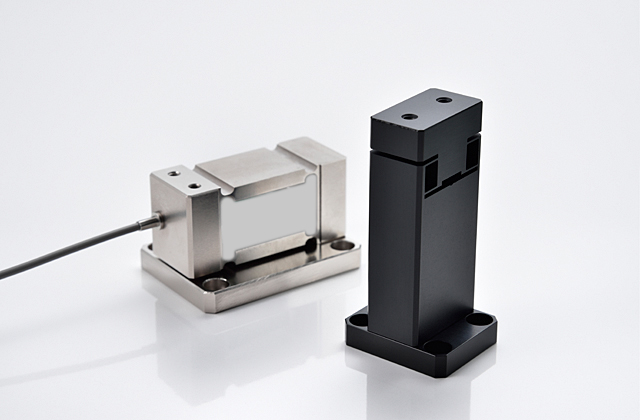

In this product, a piezoelectric element is incorporated into a compact guide mechanism so that the element can be easily used as an actuator. Since the product has tapped holes, it can be easily secured and removed, and with an elastic hinge guide, a highly linear motion can be obtained. It does not contain a displacement sensor.

  • Use of a piezoelectric element in experiments and research and development
  • Fine adjustment of motion in nanometers
  • Smooth motion with no sticking or slippage (stick-slip)
  • Incorporation of a piezoelectric actuator into equipment
Direct-drive mechanism
  • This type places a focus on the response speed and the generative force with a short stroke.
  • Capable of performing stable operation even with a very heavy object.
  • The cable length is 2 m as standard, and the cable end has a lead wire (discrete wire).

A change of the cable length or attachment of a connector is negotiable if requested.

Model number Travel range
[μm]
Generated force
[N]
Resonant Frequency
[Hz]
PE1H-014U-N 14 900 3500
PE1H-032U-N 32 1000 3100
Displacement magnification mechanism
  • This type has a function for mechanically increase the elongation of the piezoelectric element in order to ensure a long stroke.
  • With an elastic hinge guide, friction-free smooth motion can be obtained.
  • The cable length is 2 m as standard, and the cable end has a lead wire (discrete wire).

A change of the cable length or attachment of a connector is negotiable if requested.

Model number Travel range
[μm]
Generated force
[N]
Resonant Frequency
[Hz]
PE1L-100U-N 100 50 500
PE1L-300U-N 300 60 250
