XAxis Standard model
Standard linear stages constitute a basic series among the piezo stage lineup, which ranges from single-axis types to integrated three-axes types with various strokes.
Classification of performances with two mechanisms
The mechanisms are classified into a "direct-drive mechanism," which has a high resonant frequency and is focused on high-speed response, and a "displacement magnification mechanism," which secures a stroke.
-
Direct-drive mechanism
- A mechanism in which a piezo-electric elements directly moves the table.
- It excels in resolution and response thanks to a short stroke.
- With high rigidity, it is capable of performing stable positioning even under a large load.
-
Displacement magnification mechanism
- The product has a mechanism for mechanically amplifying the elongation of the piezo-electric element.
- A stroke several times to more than ten times longer than the direct-drive type can be obtained according to the magnification ratio.
- Feedback control with the built-in displacement sensor also enables the positioning reproducibility to be maintained.
Applications
- Semiconductor and FPD inspection
- HDD Tester
- Laser optic alignment
- Interferometer devices
- Analytical Instruments
- Nanometer positioning
PS1H / PS1L Standard linear X-axis stage
PS1H Direct-drive mechanism
| Model number | PS1H25-006U | PS1H35-006U | PS1H45-012U | PS1H60F-012U | PS1H40F-020U | PS1H60-020U | PS1H80-030U | PS1H80F-030U |
|---|---|---|---|---|---|---|---|---|
| Appearance |
 |
 |
 |
 |
 |
 |
 |
 |
| Travel range ( Closed loop ) |
6 μm | 12 μm | 20 μm | 30 μm | ||||
| Resolution | 1 nm | |||||||
| Repeatability | ±1 nm | |||||||
| Load capacity | 5 N | 10 N | 10 N | 50 N | 30 N | 10 N | 10 N | 50 N |
| Resonant frequency （0g Load） |
13000 Hz | 9700 Hz | 6200 Hz | 4100 Hz | 4100 Hz | 3300 Hz | 1900 Hz | 1900 Hz |
| Built-in displacement sensor | Capacitive displacement sensor | |||||||
| Body Material | Aluminum | Aluminum | Aluminum | Steel | Steel | Aluminum | Aluminum | Steel |
PS1L Displacement magnification mechanism
| Model number | PS1L45-030U | PS1L40-050U | PS1L60-060U | PS1L40-100U | PS1L65-250U | PS1L66-500U | PS1L80-700U |
|---|---|---|---|---|---|---|---|
| Appearance |
 |
 |
 |
 |
 |
 |
 |
| Travel range ( Closed loop ) |
30 μm | 50 μm | 60 μm | 100 μm | 250 μm | 500 μm | 700 μm |
| Resolution | 1 nm | 2 nm | 10 nm | 20 nm | 30 nm | ||
| Repeatability | ±1 nm | ±2 nm | ±10 nm | ±20 nm | ±30 nm | ||
| Load capacity | 10 N | 5 N | 10 N | 5 N | 5 N | 5 N | 5 N |
| Resonant frequency （0g Load） |
1500 Hz | 970 Hz | 1300 Hz | 510 Hz | 360 Hz | 200 Hz | 106 Hz |
| Built-in displacement sensor | Capacitive displacement sensor | ||||||
| Body Material | Aluminum | Aluminum | Aluminum | Aluminum | Aluminum | Aluminum | Aluminum |
PS1H / PS1L Standard linear X-axis stage
PS1H Direct-drive mechanism
PS1L Displacement magnification mechanism
PS1H Direct-drive mechanism
PS1L Displacement magnification mechanism

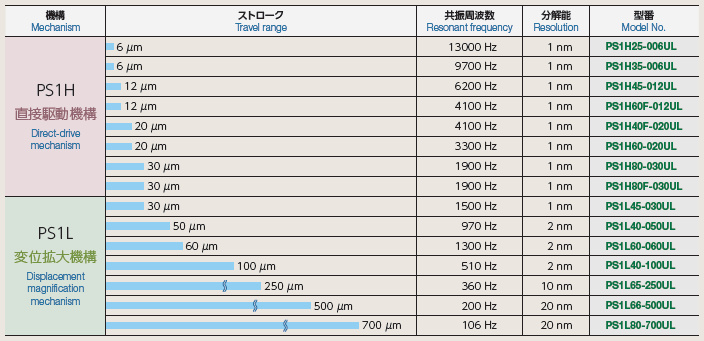

Comparison list of mechanism, stroke, resolution, and resonant frequency
It is recommended that the stroke be kept to the minimum required for high responsiveness and high resolution.
