XYAxis High durability model
Standard linear stages constitute a basic series among the piezo stage lineup, which ranges from single-axis types to integrated three-axes types with various strokes.
Classification of performances with two mechanisms
The mechanisms are classified into a "direct-drive mechanism," which has a high resonant frequency and is focused on high-speed response, and a "displacement magnification mechanism," which secures a stroke.
-
Direct-drive mechanism
- A mechanism in which a piezo-electric elements directly moves the table.
- It excels in resolution and response thanks to a short stroke.
- With high rigidity, it is capable of performing stable positioning even under a large load.
-
Displacement magnification mechanism
- The product has a mechanism for mechanically amplifying the elongation of the piezo-electric element.
- A stroke several times to more than ten times longer than the direct-drive type can be obtained according to the magnification ratio.
- Feedback control with the built-in displacement sensor also enables the positioning reproducibility to be maintained.
Applications
- Semiconductor and FPD inspection
- HDD Tester
- Laser optic alignment
- Interferometer devices
- Analytical Instruments
- Nanometer positioning

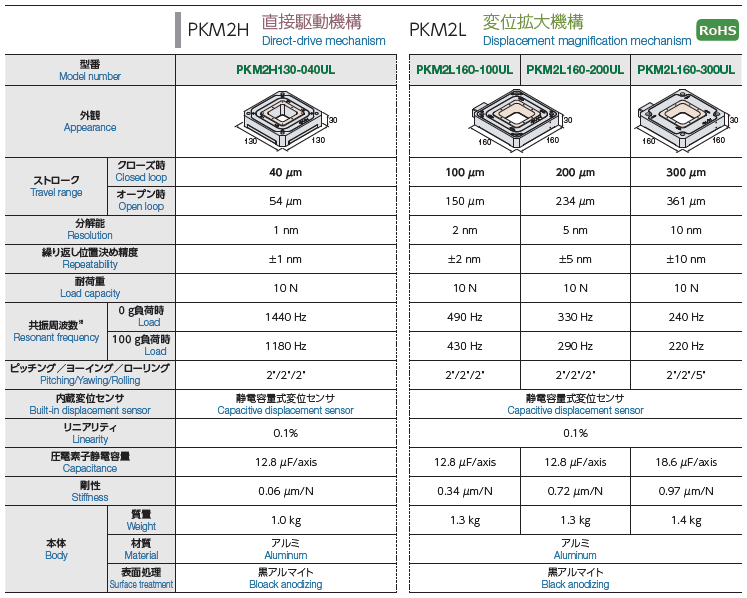

PKM2H Direct-drive mechanism
| Model Number | PKM2H130-040U |
|---|---|
| Appearance |  |
| Travel range ( Closed loop ) | 40μm |
| Resolution | 1nm |
| Repeatability | ±1nm |
| Load capacity | 10N |
| Resonant frequency ( 0g Load ) | 1440Hz |
| Built-in displacement sensor | Capacitive displacement sensor |
| Body Material | Aluminum |
PKM2L Displacement magnification mechanism
| Model Number | PKM2L160-100U | PKM2L160-200U | PKM2L160-300U |
|---|---|---|---|
| Appearance |  |
 |
|
| Travel range ( Closed loop ) | 100μm | 200μm | 300μm |
| Resolution | 2nm | 5nm | 10nm |
| Repeatability | ±2nm | ±5nm | ±10nm |
| Load capacity | 10N | 10N | 10N |
| Resonant frequency ( 0g Load ) | 490Hz | 330Hz | 240Hz |
| Built-in displacement sensor | Capacitive displacement sensor | ||
| Body Material | Aluminum | ||

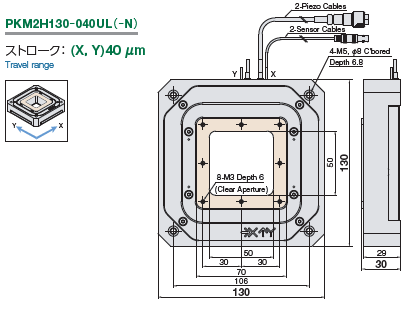

PKM2H Direct-drive mechanism

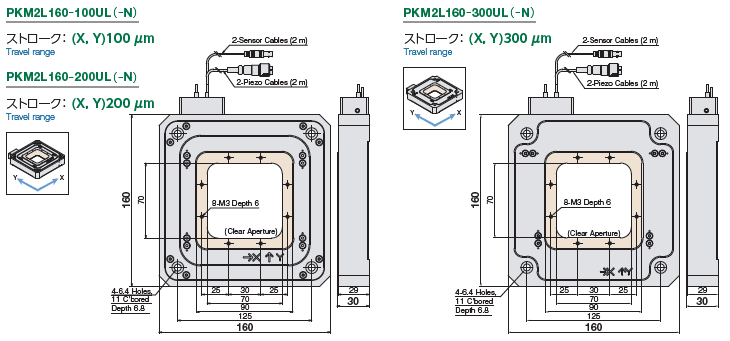

PKM2L Displacement magnification mechanism
PKM2H Direct-drive mechanism
PKM2L Displacement magnification mechanism
