Double-axis type
This stage is intended to achieve nano-micro processing in precision cutting. It is capable of performing position control for tool cutting and the work (workpiece to be processed) at high speed and with high accuracy.
A dust-proof and drip-proof measure
- A sealed structure is adopted as a measure to protect the stage from a machining fluid or mist, and prevent tiny chips from entering the stage.
A robust body
- The body is made of steel in order to secure stability during machining.
- The body structure is so robust that the machining accuracy is not impaired by factors such as chatter vibration or cutting load.
Applications
- Diamond bit feeding
- Fine cutting and grinding
- High-speed tool control, FTS
- Work positioning
- Precision metal processing
- Precision positioning of high load object
PU2 Double-axis type

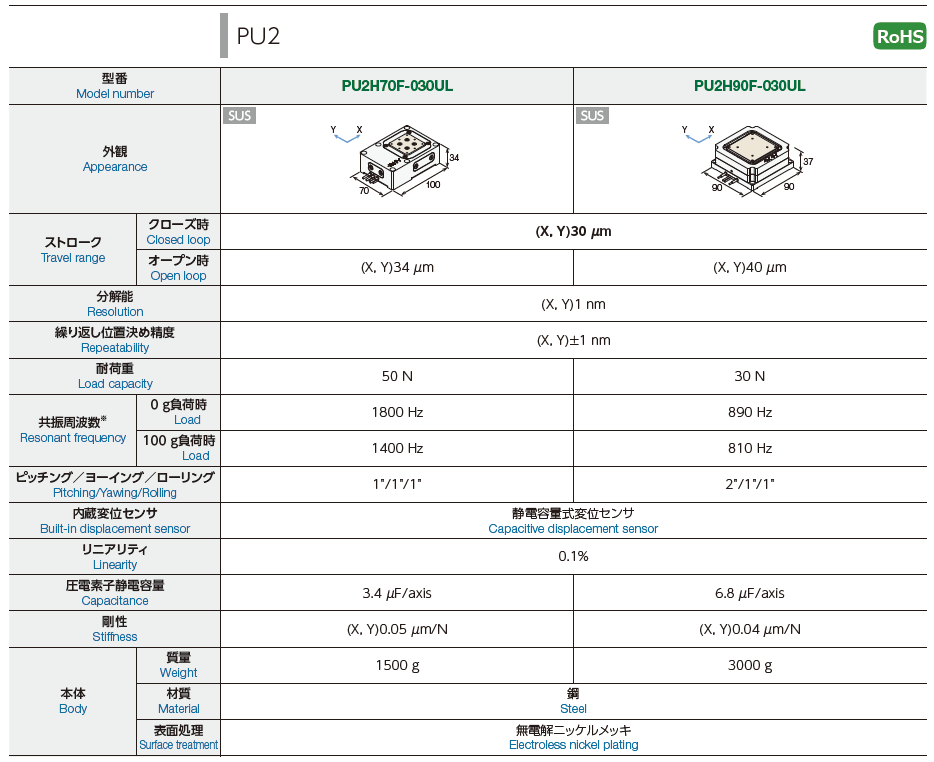

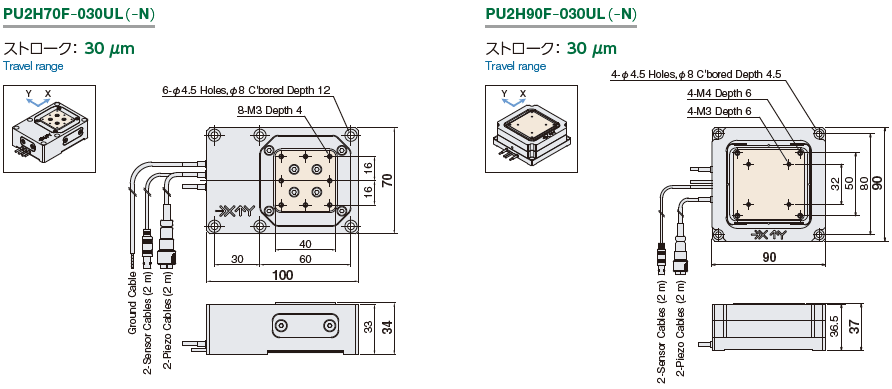

| Model Number | PU2H70F-030U | PU2H90F-030U |
|---|---|---|

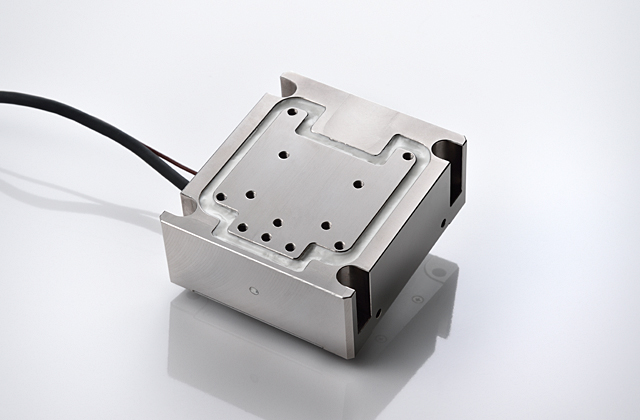

| Appearance |  |
 |
| Travel range ( Closed loop ) | (X, Y)30 μm | |
| Resolution | (X, Y)1 nm | |
| Repeatability | (X, Y)±1 nm | |
| Load capacity | 50 N | 30 N |
| Resonant frequency ( 0g Load ) | 1800 Hz | 890 Hz |
| Built-in displacement sensor | Capacitive displacement sensor | |
| Body Material | Steel | |
